A330, 30 Ton, Arbor Hydraulic Press
Item ID: A330
$4,768.41
Free ShippingEst. Ship date is Fri, Oct 16th 2026
Product Specifications
Dimension L (in)8
Maximum Operating Pressure (bar)700
Dimension O (mm)276
Available - In Stock
About this Product
Features
- Foot mounting holes for horozontal or vertical positioning
- Machined work surfaces for easier fixturing
- Slotted back to simplify loading and unloading of longer parts
Units:
Dimension L (in)8
Maximum Operating Pressure (bar)700
Dimension O (mm)276
Press Capacity (tons)30
Dimension O (in)10.88
Compatible CylindersRC308
Weight (kg)100
Product TypeArbor Press
Maximum Operating Pressure10,000
Dimension N (mm)98
Press Capacity (kN)267
Dimension L (mm)203
Maximum Bed Width (in)7
Capacity (kn)267
Dimension M (mm)67
Press Capacity (imperial tons)30
Capacity (Imperial tons)30
Dimension N (in)3.88
Weight (lbs)220
Dimension M (in)2.63
Maximum Vertical Daylight (in)10
Maximum Vertical Daylight (mm)260
Maximum Operating Pressure (psi)10000
Maximum Bed Width (mm)178

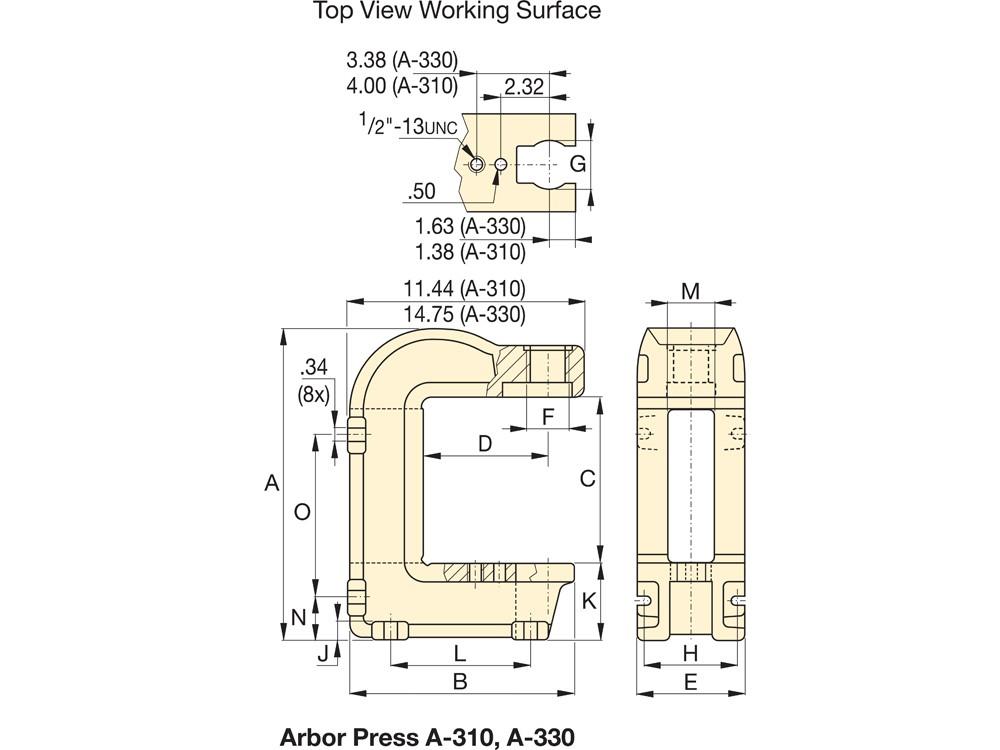

Units:
Dimension A22.18"
Dimension B14.02"
Dimension C10"
Dimension D7.4"
Dimension E7"
Dimension F3 5/16 - 12 un"
Dimension G2.5"
Dimension H5.5"
Dimension J1.1"
Dimension K6.63"
