A64, 7 Port, Hydraulic Manifold, 7 in Long
Item ID: A64
$233.62
Free ShippingEst. Ship date is Fri, Oct 16th 2026
Product Description
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Product Specifications
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Weight (lbs)3.3
Available - In Stock
About this Product
Enerpac A-Series hydraulic manifolds allow you to split the flow of hydraulic oil from a central block.
A64, A65, and A66 manifolds have a 3/8"-18 NPT female port and maximum operating pressure of 10,000 psi (700 bar).
A63, A60, and A61 manifolds have a SAE #4 female port and a maximum operating pressure of 5,000 psi (350 bar).
Features
- Easy to connect
- Mounting holes on all models

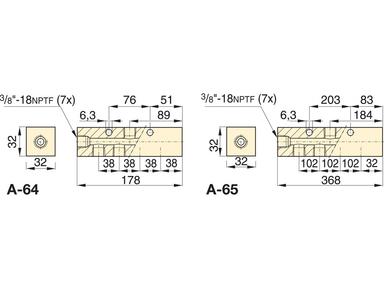

Units:
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Weight (lbs)3.3
Product TypeLong Manifold
Dimension D1 (in)3
Dimension D1 (mm)76
Dimension D2 (in)1.25
Dimension D2 (mm)50
Dimension F1 (in)1.25
Dimension F1 (mm)32
Dimension F2 (in)3.5
Dimension F2 (mm)89
Number of Ports7
Oil PortsG3/8"
Oil Ports (NPTF)3/8"

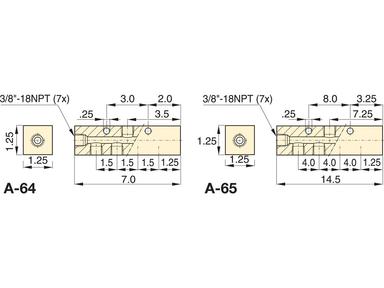

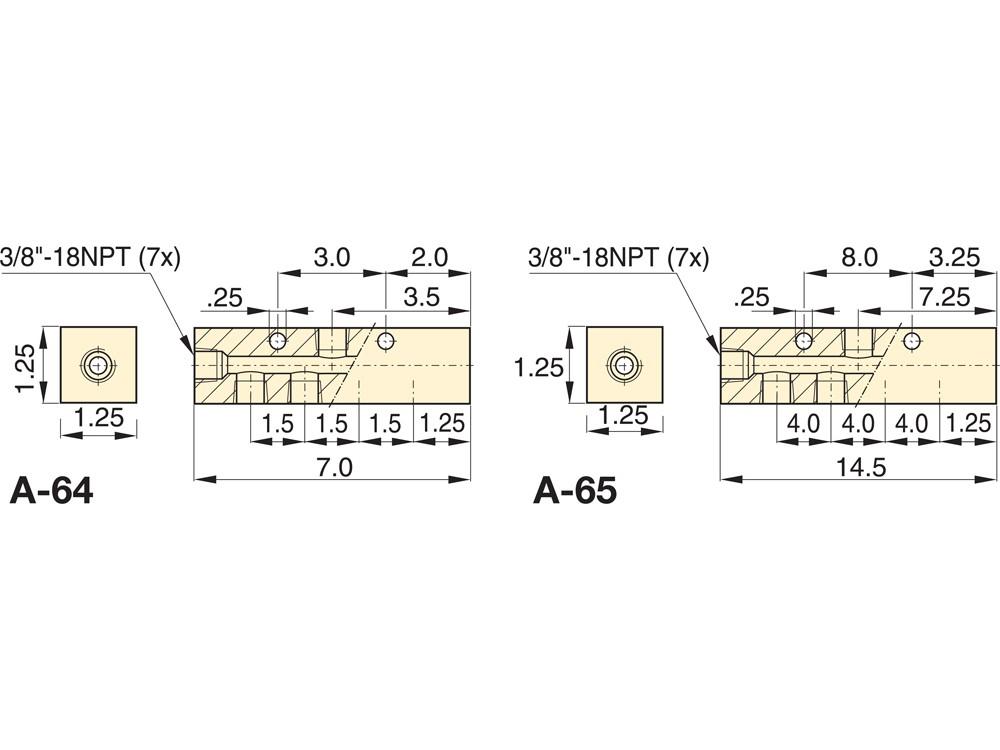

Units:
Dimension A7"
Dimension B1.25"
Dimension C1.25"
Dimension D0.25"
Dimension E.375 - 18 NPT"
Dimension F1.5"
