CR320B, Reel Jacks, 10 ton (89,0 kN) Capacity, 9.5 in (241,3 mm) Stroke
Item ID: CR320B
$1,815.68
Free ShippingEst. Ship date is Thu, Oct 15th 2026
Product Description
- Double-lever sockets for jacking in close quarters.
- Multiple-tooth pawls for strength & safety.
- Drop-forged, alloy steel, heat-treated components.
- Adjustable spring links for added serviceability.
- Plated springs to resist corrosion.
- Precision machining throughout.
- Steel lever bars sold separately.
- Convenient center mounted carrying handle makes this jack easy to position and move.
- Treated laminated hardwood base provides solid support along with durability.
- CE Compliant - Our Jack design specifications meet or exceed ANSI /ASME B30.1 Safety Standards.
Product Specifications
Capacity (Imperial tons)10
Capacity (kn)890
Weight (lbs)51
Available - Backorder
About this Product
- Double-lever sockets for jacking in close quarters.
- Multiple-tooth pawls for strength & safety.
- Drop-forged, alloy steel, heat-treated components.
- Adjustable spring links for added serviceability.
- Plated springs to resist corrosion.
- Precision machining throughout.
- Steel lever bars sold separately.
- Convenient center mounted carrying handle makes this jack easy to position and move.
- Treated laminated hardwood base provides solid support along with durability.
- CE Compliant - Our Jack design specifications meet or exceed ANSI /ASME B30.1 Safety Standards.
Units:
Capacity (Imperial tons)10
Stroke (inch)9.5
Power SourceMechanical
Capacity/Pair Side Hooks (tons)5
Capacity/Pair Top Hooks (tons)10
Handle Effort per Ton (lbs)72
Weight (lbs)51

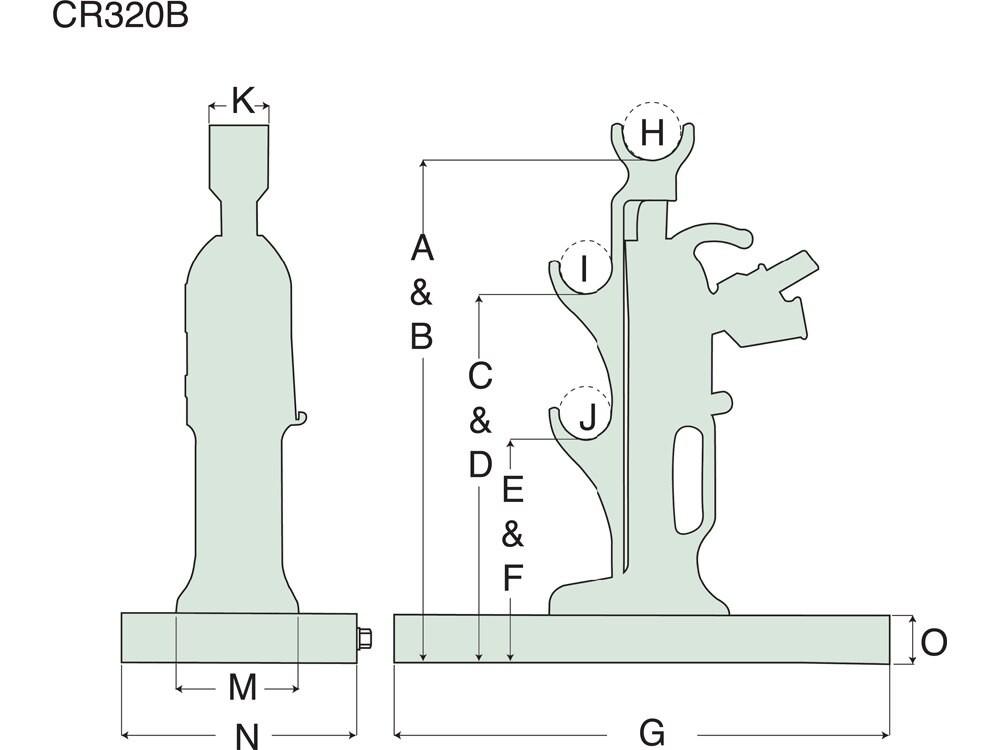

Units:
Dimension A20.75"
Dimension B30.25"
Dimension C15.25"
Dimension D24.75"
Dimension E9.25"
Dimension F18.75"
Dimension G20.38"
Dimension H2.62"
Dimension J2.25"
Dimension K2.38"
