ETT200, 225 Ton Turntable
Item ID: ETT200
Contact for Pricing
Product Specifications
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)2000
About this Product
Features
- Safe and controlled rotation of heavy loads
- Easily change rotation direction
- Capacity: 225 tons with one cylinder
- Compact size for use in applications with limited space
- Compatible with standard Enerpac pumps
- Hardwood surface.
- Cylinder model number: BRD259-ETT
Units:
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)2000
Capacity (Metric Tons)225
Weight (lbs)3748
Weight (kg)1700
Product TypeIndustrial-Turntable
Cylinder Capacity (imperial ton)25
Cylinder Capacity (kN)222

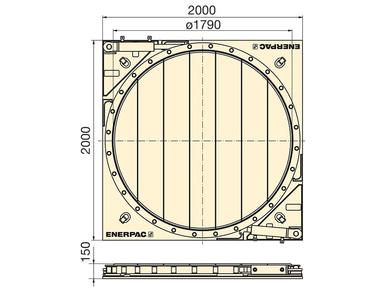

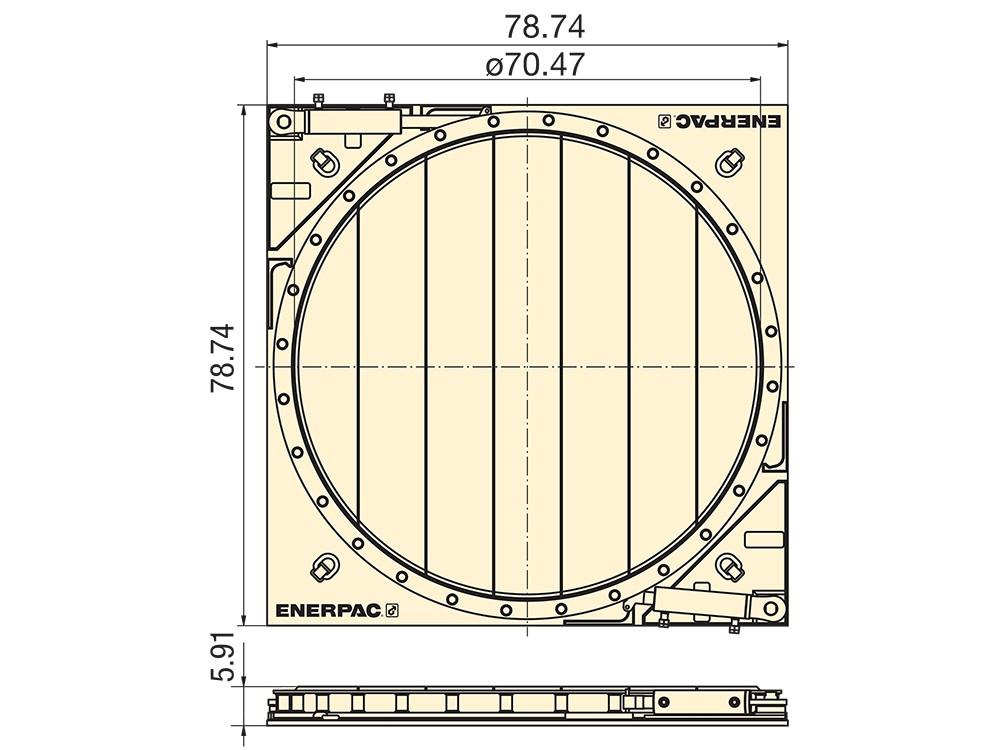

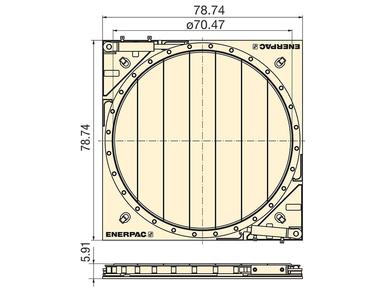

Dimension L (in)78.74
Dimension L (mm)2000
Dimension W (in)78.74
Dimension W (mm)2000
Number of Cylinders1
Cylinder Oil Capacity, Retract (cm3)344
Cylinder Oil Capacity, Retract (in3)21
Cylinder Oil Capacity, Advance (cm3)792
Cylinder Oil Capacity, Advance (in3)48.31
Platform Diameter (in)70.47
Platform Diameter (mm)1790
Rotation per Stroke (degrees)12,5
Units:
Dimension H5.91"
