EWCH140, 61.8 Ton Capacity, Hydraulic Wire and Cable Cutter, Maximum Material Diameter 5.51 in
Item ID: EWCH140
$22,284.48
Free ShippingEst. Ship date is Tue, DecĀ 29th 2026
Product Specifications
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)61.8
Available - Backorder
About this Product
Features
- Your quick and clean way to cut cable and wire rope
- The EWCH-Series Hydraulic Wire and Cable Cutters are ideal for use in production facilities where demanding, high volume cutting applications are often encountered.
- Each tool is driven by a specialized external hydraulic pump, which provides greater cutting force and allows for higher duty cycles compared with other cutter types.
- The EWCH-Series Hydraulic Cutters are designed to work with ZE6410X-Series electric pumps. Pump models vary by voltage type.
- Controlled cutting process enhances operator safety
- Minimal spark risk compared with torching, grinding and sawing methods
- Cutters produce minimal vibration, helping prevent HAVS (Hand Arm Vibration Syndrome)
- Guillotine-style blades maintain effectiveness throughout rigorous use.
- Cutting head can be opened and closed to help position material to be cut
- Double-acting cylinder with advance and retract buttons improves control and reduces jamming
- External hydraulic pump helps keep tool cooler and working longer (pump and hose sold separately)
Units:
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)61.8
Maximum Material HardnessHRc 43
Pump Power SourceElectric Pump
Cutter Power SourceElectric
Maximum Material Diameter (in)5.51
Maximum Material Tensile Strength (psi)94,275
Weight (lbs)198
Units:

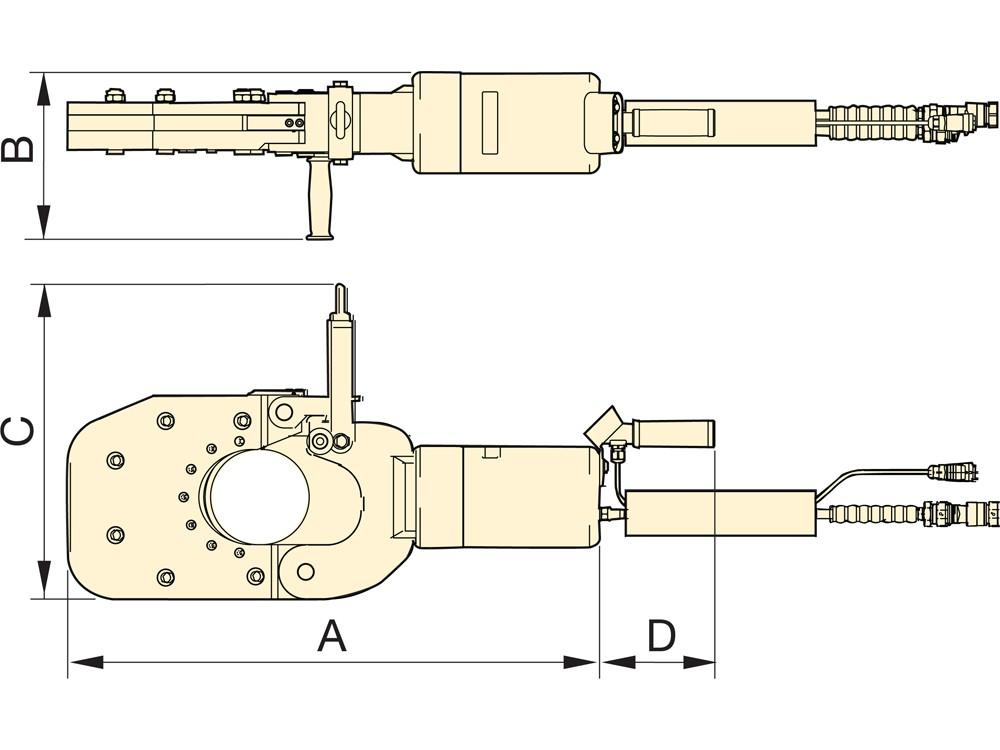

Dimension A30.8"
Dimension B9.7"
Dimension C12.2"
Dimension D6.7"
