IPM3, 2-3 Jaw, Internal Puller
Item ID: IPM3
$825.52
Free ShippingEst. Ship date is Fri, JanĀ 1st 2027
Product Specifications

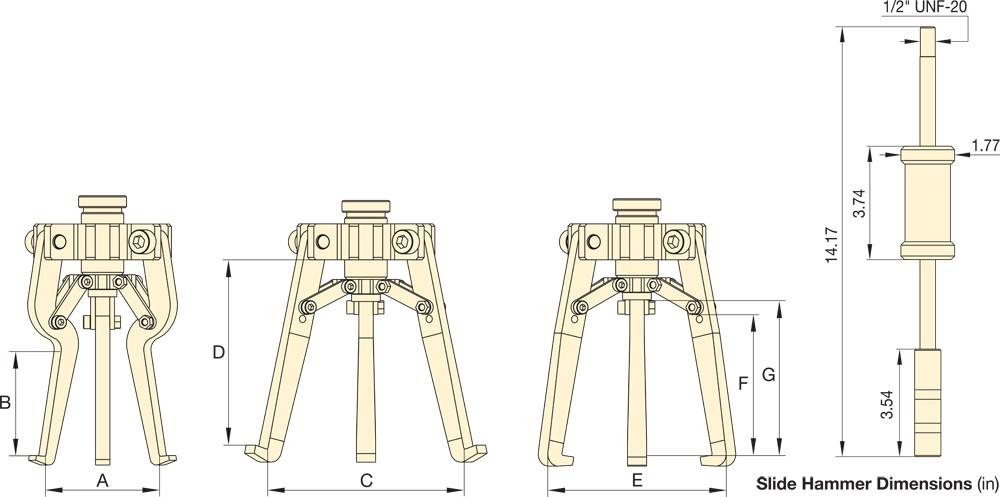

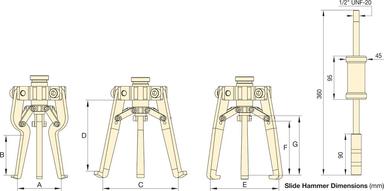

Standard Jaw, External Configuration, Maximum Spread Diameter E (in)2.95
Standard Jaw, External Configuration, Maximum Spread Diameter E (mm)75
Standard Jaw, External Configuration, Minimum Spread Diameter E (in)0.59
Available - Backorder
About this Product
Features
- Remove bearings or other shaft-mounted parts where no spindle support is available
- Slide hammer allows for application of safe, high-impact force
- Includes two sets of jaws for internal and external pulling applications
- Always wear safety goggles and gloves while using pullers.
Units:
Standard Jaw, External Configuration, Maximum Spread Diameter E (in)2.95
Standard Jaw, External Configuration, Maximum Spread Diameter E (mm)75
Standard Jaw, External Configuration, Minimum Spread Diameter E (in)0.59
Standard Jaw, External Configuration, Minimum Spread Diameter E (mm)15
Standard Jaw, Internal Configuration, Maximum Reach D (in)3.11
Standard Jaw, Internal Configuration, Maximum Reach D (mm)79
Standard Jaw, Internal Configuration, Maximum Spread C (in)3.94
Standard Jaw, Internal Configuration, Maximum Spread C (mm)100
Standard Jaw, Internal Configuration, Minimum Spread C (in)2.36
Standard Jaw, Internal Configuration, Minimum Spread C (mm)60
Weight (lbs)4.6
Weight (kg)1,9
Product TypeInternal Mechanical Pullers
Internal Jaw, Maximum Reach B (in)1.77
Internal Jaw, Maximum Reach B (mm)45
Internal Jaw, Maximum Spread Diameter A (in)2.36
Internal Jaw, Maximum Spread Diameter A (mm)60
Internal Jaw, Minimum Spread Diameter A (in)0.98
Internal Jaw, Minimum Spread Diameter A (mm)25
Puller Power SourceMechanical
Units:
Dimension G2.75"
