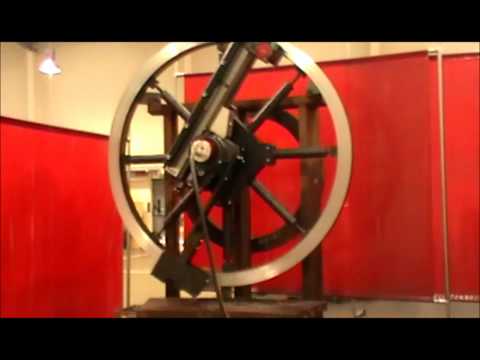

MM1500i, Internal Mount Flange Facing Machine, 12-60" (305-1524 mm) Facing Diameter
Item ID: MM1500i
Contact for Pricing
Product Description
An internally mounted and robust flange facing machine using fixed gears to produce 6 continuous groove gramophone finishes to ASME Standard.
Product Specifications
Product TypeInside Mount Flange Facing Machines
Air Supply Needed @ 90 psi (scfm)102.4
Air Supply Needed @ 90 psi (m3/min)2.89
About this Product
An internally mounted and robust flange facing machine using fixed gears to produce 6 continuous groove gramophone finishes to ASME Standard.
Features
Key Features
- Precision construction
- 6 continuous groove facing feeds for a gramophone finish (ASME Standard)
- 3 different sized quick set independent bases for improved on-site operation
- Hardened slide ways to maintain long term accuracy
- Swivel tool post for groove details; reduces need for separate accessories
Units:
Product TypeInside Mount Flange Facing Machines
Air Supply Needed @ 90 psi (scfm)102.4
Air Supply Needed @ 90 psi (m3/min)2.89
Clamping Range (in)11.4 - 55
Clamping Range (mm)290 - 1400
Facing Feed Rate, In, Gear 1 (in/rev)0.006
Facing Feed Rate, In, Gear 1 (mm/rev)0.155
Facing Feed Rate, In, Gear 2 (in/rev)0.009
Facing Feed Rate, In, Gear 2 (mm/rev)0.241
Facing Feed Rate, In, Gear 3 (in/rev)0.023
Facing Feed Rate, In, Gear 3 (mm/rev)0.588
Facing Feed Rate, Out, Gear 1 (in/rev)0.005
Facing Feed Rate, Out, Gear 1 (mm/rev)0.13
Facing Feed Rate, Out, Gear 2 (in/rev)0.008
Facing Feed Rate, Out, Gear 2 (mm/rev)0.203
Facing Feed Rate, Out, Gear 3 (in/rev)0.019
Facing Feed Rate, Out, Gear 3 (mm/rev)0.494
Grooves per Inch, In, Gear 1164
Grooves per Inch, In, Gear 2105
Grooves per Inch, In, Gear 343
Grooves per Inch, Out, Gear 1195
Grooves per Inch, Out, Gear 2125
Grooves per Inch, Out, Gear 351
Maximum Facing Diameter (in)60
Maximum Facing Diameter (mm)1500
Minimum Facing Diameter (in)12
Minimum Facing Diameter (mm)305
Minimum Swing Diameter (in)47.3
Minimum Swing Diameter (mm)1200
Number of Feed Settings (standard)6
RPM (max)20
Standard Drive TypeAir
Tool Post Travel (in)4
Tool Post Travel (mm)102
Hydraulic Option AvailableYes
Maximum Base Assembly Weight (kg)67
Maximum Base Assembly Weight (lbs)148
Output Pneumatic (hp)4
Output Pneumatic (kw)3
Weight (excluding base) (kg)155
Weight (excluding base) (lbs)342
