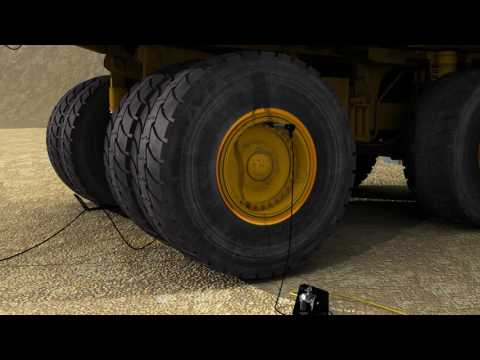

Watch onYouTube
Video unavailable
Product image 4 of 2

PL20025ASA, 200 Ton, 24.5 in Stroke, Pow'R-LOCK Self-Locking Portable Lifting Jack

Item ID: PL20025ASA

Contact for Pricing

Product Specifications

Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Stroke (inch)24.5

About this Product

Features

  • The Pow’R-LOCK™ Lift System provides continuous positive locking of the load through all stages of lifting and lowering. No operator intervention is required to activate or deactivate the automatic locking system
  • Provides continuous locking protection during lift, lower and hold functions
  • Patent-pending control technology synchronizes cylinder and lock nut for smooth and efficient lifting and lowering
  • Unique double-acting cylinder offers a low collapsed height to accomodate more lifting applications
  • Simple 2-button pendant allows operation of raise and lower functions from up to 20 feet away
  • All exposed load-bearing steel cylinder components utilize a nitrocarburizing treatment to reduce wear and resist corrosion
  • Ergonomic handle has six positions for comfortable handling and folds when not in use
  • Meets ANSI /ASME B30.1-2015, AS/NZS-2538, AS/NZS-2693 certification criteria
  • All Pow'R-LOCK™ Lift System models feature a Tilt Load Cap to reduce side-loading
  • Enerpac declares that this product has been tested and conforms to applicable standards and is approved to carry the CE mark. An EU Declaration of Conformity is enclosed separately.
  • Minimum dynamic air pressure of 55-60 psi, 90-100 psi required to achieve 200 ton capacity
  • Safety First - When lifting large, heavy vehicles certain precautions must be followed. Follow your published safety directions for lifting and cribbing your loads. The Pow'R-LOCK™ Lift System provides load/lock protection, but you must follow the safety directions for load cribbing operations.
Units:
Maximum Operating Pressure (bar)700
Maximum Operating Pressure (psi)10000
Stroke (inch)24.5
Stroke (mm)622
Capacity (Imperial tons)200
Capacity (kn)1779
Weight (lbs)1320
Weight (kg)599
Product TypePow'R-LOCK Jack Pneumatic
Collapsed Height B (in)45.5
Cylinder Lifting Speed with No Load (in/min)2.4
Cylinder Lifting Speed NoteDepending on available airflow, regulator setting, pump speed and load weight
Cylinder Lifting Speed with Load (in/min)2
Extended Height A (in)70
Front Base Width (in)23.6
Handle Down Height (in)38.6
Handle Up Height (in)64
Handle Width (in)15.7
Jack Capacity Advance (imperial tons)200
Maximum Additional Stack Height Using Optional Extension System (in)9
Outside Diameter (in)14.5
Power SourceAir
Power Source SpecAir Pump (130-150 cfm, 55-100 psi)
Rear Wheel Width (in)25.4
Saddle Diameter (in)5
Total Length (in)89.9
Collapsed Height B (mm)1156
Collapsed Height (in)45.5
Collapsed Height (mm)1156
Cylinder Lifting Speed with No Load (mm/min)61
Cylinder Lifting Speed with Load (mm/min)51
Extended Height A (mm)1778
Front Base Width (mm)599
Handle Down Height (mm)980
Handle Height (mm)1626
Handle Up Height (mm)1626
Handle Width (mm)399
Maximum Additional Stack Height Using Optional Extension System (mm)229
Outside Diameter B (mm)1156
Outside Diameter (mm)368
Rear Wheel Width (mm)645
Saddle Diameter (mm)127
Total Length (mm)2283
