PRAMA06027L, 60 Ton, 27 in Stroke, Pneumatic POW'R-RISER Lifting Jack
Item ID: PRAMA06027L
$36,139.82
Free ShippingEst. Ship date is Tue, Dec 8th 2026
Product Specifications
Maximum Operating Pressure (bar)420
Maximum Operating Pressure (psi)6000
Stroke (inch)27
Available - Backorder
About this Product
Features
- 4-inch ground clearance for transport over rail and rough terrain
- Three-position handle provides easy tilt back and transport
- Complies with ASME/ANSI B30.1:2015 & CE specifications
- Easy-to-change external filter minimizes down time
- Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
- SUP-R-STACK™ Extension System allows lifting at all heights without blocking
Units:
Maximum Operating Pressure (bar)420
Maximum Operating Pressure (psi)6000
Stroke (inch)27
Stroke (mm)686
Capacity (Imperial tons)60
Capacity (kn)533
Weight (lbs)600
Weight (kg)272
Product TypePOW'R-RISER Jack Pneumatic

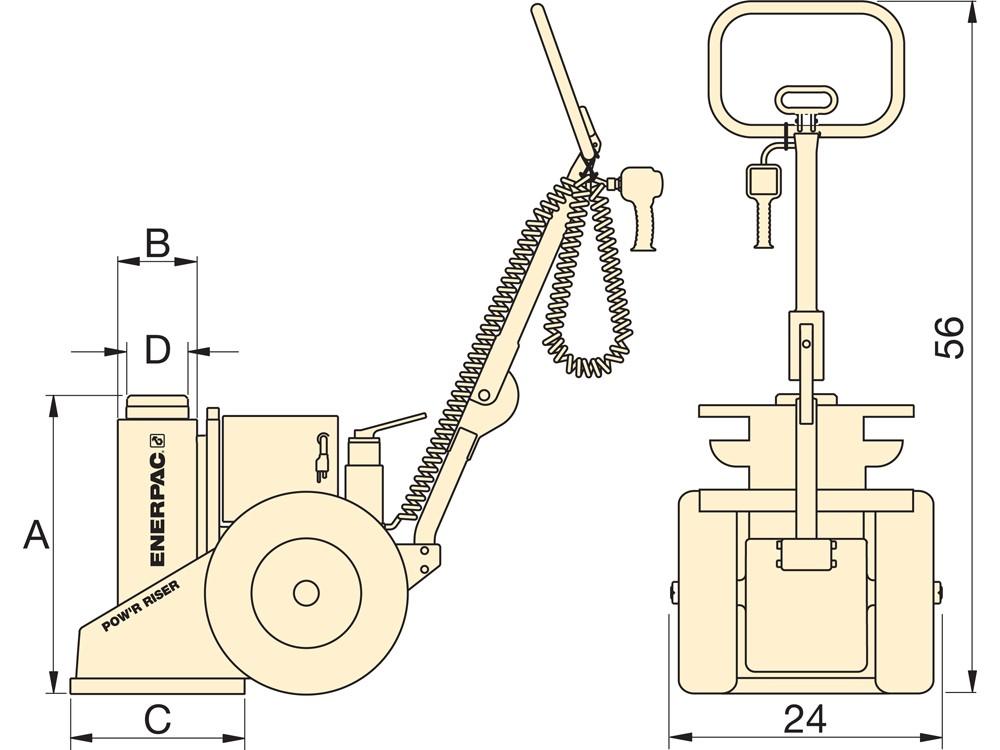

Base Dimension W x L (in)24 x 14
Collapsed Height A (in)37
Handle Height (in)56
Jack Capacity Advance (imperial tons)60
Maximum Additional Stack Height Using Optional Extension System (in)11
Outside Diameter B (in)6.4
Power SourceAir
Power Source SpecAir Pump (50 scfm, 80 psi)
Saddle Diameter D (in)4
Valve TypeManual
Collapsed Height A (mm)940
Collapsed Height (in)37
Collapsed Height (mm)940
Handle Height (mm)1422
Maximum Additional Stack Height Using Optional Extension System (mm)279
Outside Diameter B (mm)162
Saddle Diameter D (mm)102
Units:
Dimension CN/A
