RACD1004, 100 ton (889,6 kN) Capacity, 4 in (101,6 mm) Stroke, Double-Acting, Aluminum Center Hole Hydraulic Cylinder
Item ID: RACD1004
$7,355.15
Free ShippingEst. Ship date is Wed, Dec 23rd 2026
Product Description
- Technical coating reduces wear & corrosion.
- Steel piston for protection against load damage.
- Chrome plated sleeve for extra protection.
- Stop rings for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
Product Specifications
Capacity Class (tonnage)100
Weight (kg)47,6

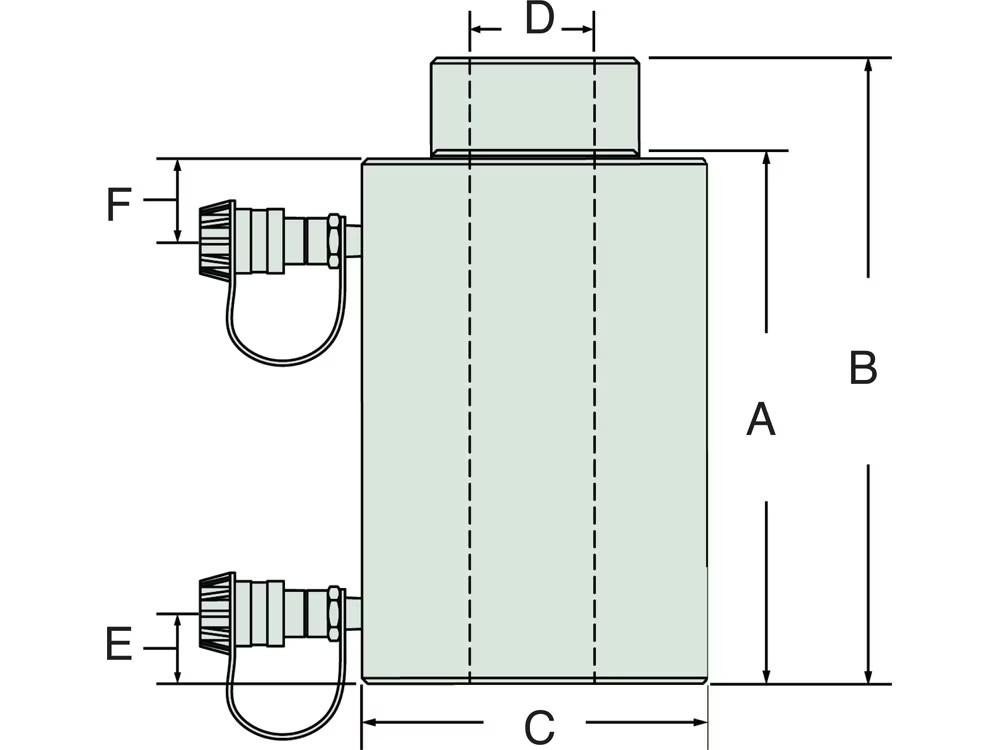

Collapsed Height A (in)12
Available - Backorder
About this Product
- Technical coating reduces wear & corrosion.
- Steel piston for protection against load damage.
- Chrome plated sleeve for extra protection.
- Stop rings for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
Units:
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)100
Stroke (inch)4
Collapsed Height A (in)12
Return TypeDouble-Acting, Hydraulic Return
Plunger TypeCenter Hole
MaterialAluminum
Weight (lbs)105
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A12"
