RARH3010, 30 ton Capacity, 9.84 in Stroke, Double-Acting, Aluminum Hollow Plunger Hydraulic Cylinder
Item ID: RARH3010
$6,437.42
Free ShippingEst. Ship date is Thu, Oct 15th 2026
Product Specifications
Maximum Operating Pressure (psi)10150
Weight (kg)14,9

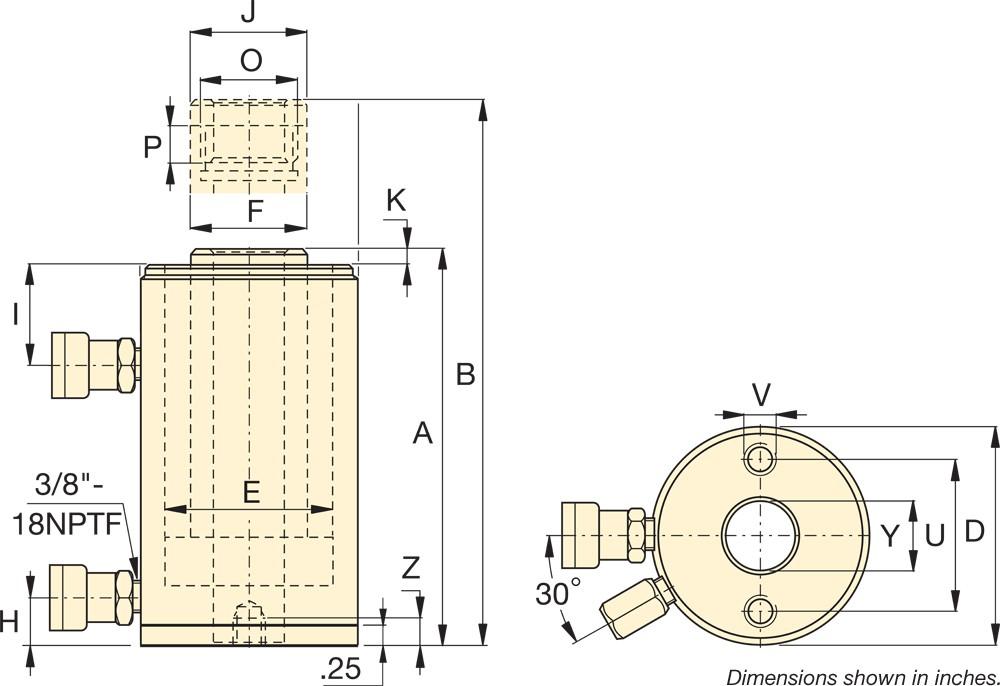

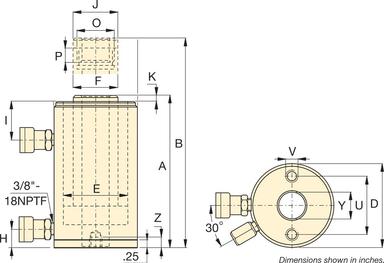

Collapsed Height A (in)16.1
Available - In Stock
About this Product
Features
- Lighter and shorter collapsed height than equivalent RACH single-acting models
- Double-acting for rapid retraction, regardless of hose lengths or system losses
- Built-in safety valve prevents accidental overpressurization
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- CR400 coupler and dust cap included on all models
- All cylinders meet ASME B-30.1 standards
Units:
Maximum Operating Pressure (psi)10150
Stroke (inch)9.84
Collapsed Height A (in)16.1
Return TypeDouble-Acting, Hydraulic Return
Plunger TypeHollow
MaterialAluminum
Weight (lbs)32.8
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A16.1"
