RCR506, 55 ton (489,3 kN) Capacity, 5.91 in (150 mm) Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
Item ID: RCR506
$2,692.17
Free ShippingEst. Ship date is Mon, Feb 15th 2027
Product Description
- Double-Acting, hydraulic return.
- Safety valve on the retract side to prevent accidental over-pressure.
- Replaceable wear bands improve seal life and side load capacity.
- Custom strokes and capacities up to 1000 ton.
- Optional tilt saddles.
Product Specifications
Stroke (mm)150

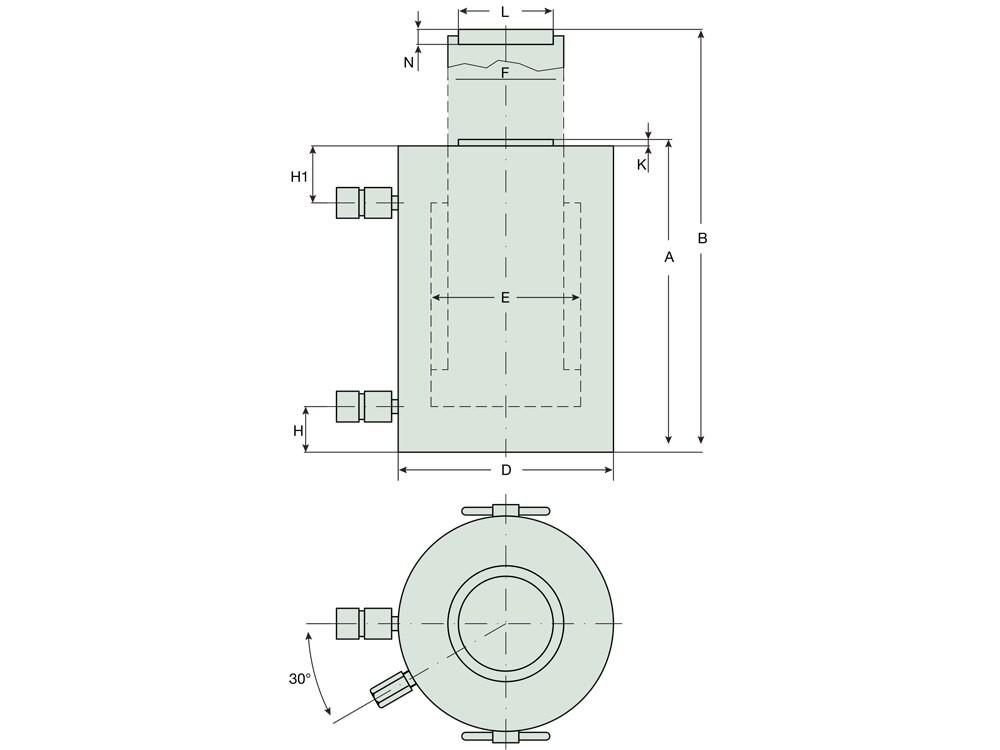

Collapsed Height A (in)12.05
Product TypeHigh Tonnage Cylinder
Available - Backorder
About this Product
- Double-Acting, hydraulic return.
- Safety valve on the retract side to prevent accidental over-pressure.
- Replaceable wear bands improve seal life and side load capacity.
- Custom strokes and capacities up to 1000 ton.
- Optional tilt saddles.
Units:
Maximum Operating Pressure (psi)10150
Capacity (Imperial tons)55
Stroke (inch)5.91
Collapsed Height A (in)12.05
Return TypeDouble-Acting, Hydraulic Return
Weight (lbs)58
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A12.05"
