RD46, 4 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Item ID: RD46
$1,552.80
Free ShippingEst. Ship date is Thu, Oct 15th 2026
Product Specifications
Return TypeDouble-Acting, Hydraulic Return
Stroke (mm)155
Maximum Operating Pressure (psi)10000
Available - In Stock
About this Product
Features
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Units:
Maximum Operating Pressure (psi)10000
Stroke (inch)6.13

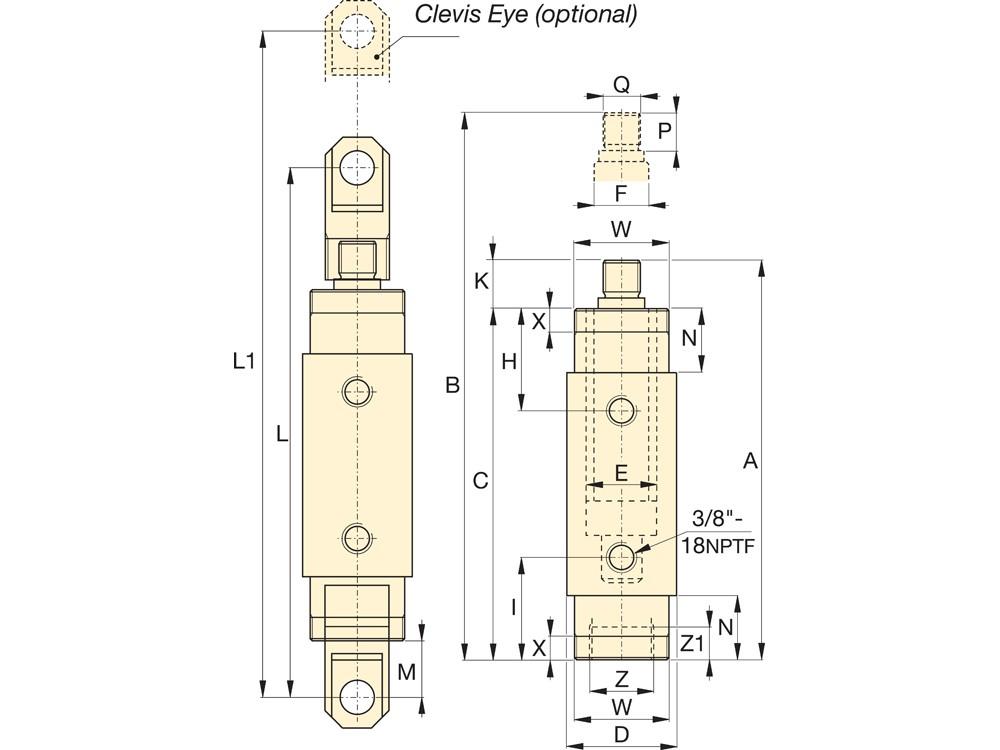

Collapsed Height A (in)12.31
Return TypeDouble-Acting, Hydraulic Return
Plunger TypeSolid
MaterialSteel
Weight (lbs)9
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A12.31"
