RLS502, 50 ton (444,8 kN) Capacity, 2.38 in (60,5 mm) Stroke, Single-Acting, Low Height Hydraulic Cylinder
Item ID: RLS502
$1,152.60
Free ShippingEst. Ship date is Tue, Oct 27th 2026
Product Description
- Compact low-profile design.
- HD spring for fast retraction.
- Grooved plunger to stabilize the load.
- Stop ring for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Plated piston to resist scoring & corrosion.
Product Specifications
Maximum Operating Pressure (psi)10000

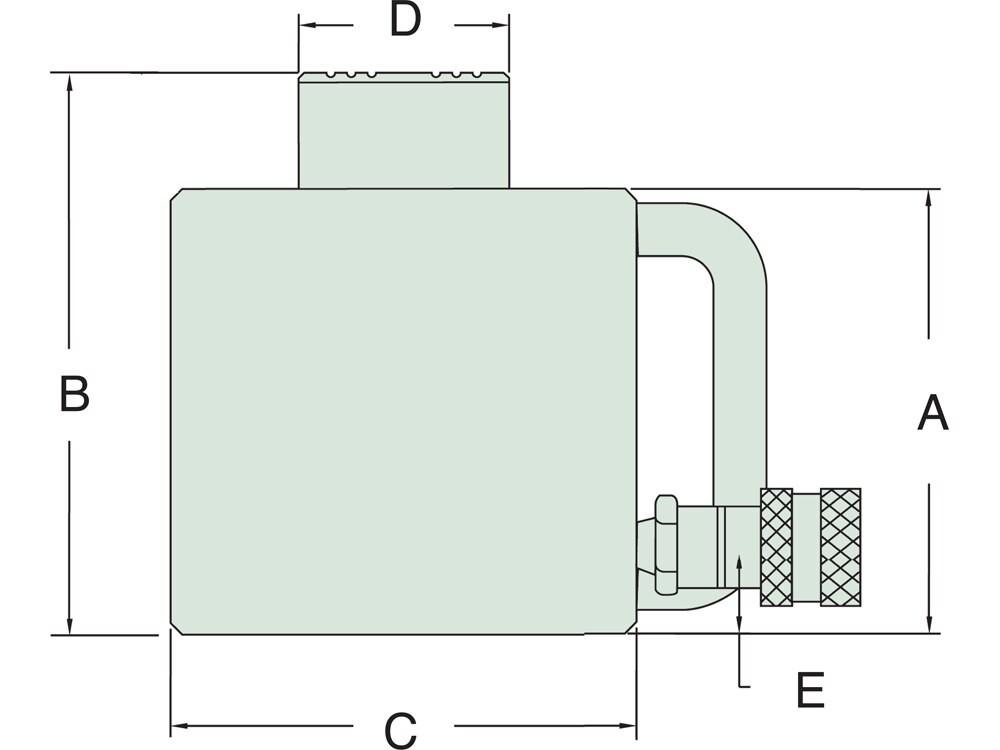

Collapsed Height A (in)4.81
Stroke (mm)60.5
Available - Backorder
About this Product
- Compact low-profile design.
- HD spring for fast retraction.
- Grooved plunger to stabilize the load.
- Stop ring for piston blow-out protection.
- Rod wiper protects inner cylinder from dirt.
- Plated piston to resist scoring & corrosion.
Units:
Maximum Operating Pressure (psi)10000
Capacity (Imperial tons)50
Stroke (inch)2.38
Collapsed Height A (in)4.81
Return TypeSingle-Acting, Spring Return
Plunger TypeSolid
MaterialSteel
Weight (lbs)24
80%
Think Safety
Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Units:
Collapsed Height A4.81"
