SOH106, 8.5 Ton, 5.39 in Stroke, Hydraulic Toe Jack
Item ID: SOH106
$2,956.05
Free ShippingEst. Ship date is Mon, NovĀ 9th 2026
Product Description
Toe Jacks such as the SOH106 are purpose-designed for lifting heavy items such as factory machinery. They include a low height lifting toe which is raised using the integral hydraulic cylinder. When used in combination with loads skates, toe jacks provide a safe and effective solution for moving heavy machinery around a facility.
Product Specifications
Capacity (Imperial tons)8.5
Capacity (kn)75
Weight (lbs)59.2
Available - Backorder
About this Product
Toe Jacks such as the SOH106 are purpose-designed for lifting heavy items such as factory machinery. They include a low height lifting toe which is raised using the integral hydraulic cylinder. When used in combination with loads skates, toe jacks provide a safe and effective solution for moving heavy machinery around a facility.
Features
- For lifting heavy equipment with minimum available access
- Remote operation of hydraulic pump enhances safety
- Precision guided - to reduce friction and prevent side loads
- Two extendable support feet provide extra stability
- Includes RC-Series cylinder with CR400 coupler
Units:
Capacity (Imperial tons)8.5
Stroke (inch)5.39
Oil Capacity (in3)13.7
Weight (lbs)59.2

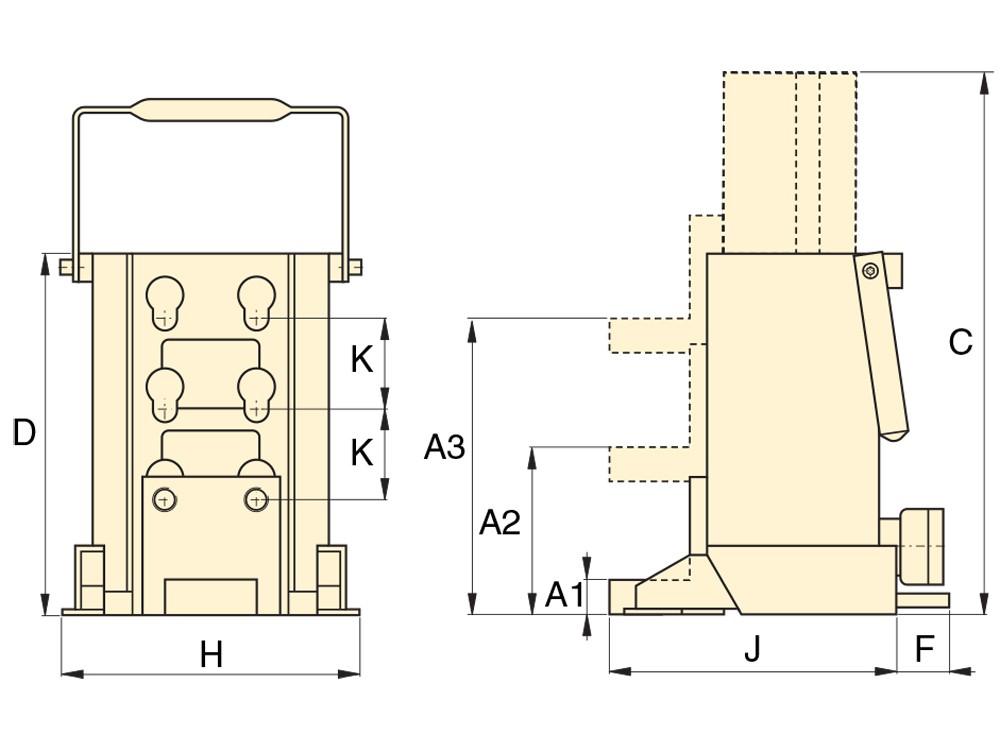

Units:
Dimension H7.48"
Dimension J8.46"
Dimension K2.95"
